Front Section of the C4 Corvette

1984 - 1988 Front Bumper Parts

Description
JC PT #
Description
JC PT #
501 Member Side Inr L/R   502 Lower Frt W/Housing L/R
503 Screw Pan Head Torx   504 Bolt HWH (4.2X1. 4X25)
505 Support Bar Impact Skid Plate   506 Bolt Hex w/ con washer
507 Ext Imp Bar Skid Plate R&L   508 Shim Impact Bar Skid Plate
509 Bolt FHH( M8X1 . 25X45)   510 Plat Impact Bar Skid
511 Nut HFH ( M8X1 .25 X 7.5)   512 Nut Spg. U-Shape Multi Thrd
513 Nut, Spl Anchor Ny (SQ hole)   514 Screw Pan Head Torx Tap
515 Support Wheel House Panel R/L   516 Outer Fascia Reinforce R/L
517 Retainer Fascia Outer   518 Fascia Molding Outer R/L
519 Nut U-Type (6.3x1.81)   520 Radiatior Air Lower Baffle
521 Wheelhouse Braket Panel R/L   522 Screw HWH Tap w/FI washer
523 Screw Hex w washer   524 Retainer Radiator Lwr Baffle
525 Inner Grill Rad Bracket R/L   526 Inner Grill Rad Mount
527 Fascia Retainer Deflector Lower   528 Deflector R/L - w/o Sport
529 Panhead Torx Screw w/ washer   530 Air Deflector Kit
531 Hex Nut(M6.3X1)   532 Upper Cntr Air Deflct Brace
533 Center Rad Grill Bracket   534 U Shaped Nut w/spacer
535 Air Deflector Package Screw   536 Cnter Fascia Molding
537 Nylon Ancor Metric Nut   538 Licence Front Plate Name
539 Fascia Main Front   540 U- shaped Nut (M4.2X1.41)
541 Push on Nut(M8X1.25)   542 Impct Bar Stud
543 Hex Nut w/Con Washer (M5X8)   544 Center Facia Retainer
545 Sems Hex Screw w/washer   546 Fascia Energy Absorber
547 Square Hole Nut (.370)   548 Main Impact Bar 2 Piece
549 Hex Screw M8X1.25X30   550 R/L Facia Brace
551 Front Fascia Refrce Cntr Bracket   552 Fascia Reniforce Bracket
553 Fascia Reniforce Bracket Center   554 Sems Hex Screw w/FI Washer
555 30 mm Impact Bar Shim   556 21 mm Impact Bar Shim
557 53 mm Imapcrt Bar Shim   558 Cross Member Bar Tie
559 Hex Nut w/Connecting Washer

1989 - 1990 C4 Corvette Front Bumper Parts

Description
JC PT #
Description
JC PT #
601 Member Side R/L Hand   626 Nylon Square Hole Nut
602 Hex Nut w/ Com Washer   627 Outer Fascia Reinforcment R/L Hand
603 Cross Bar Tie Member   628 HFH Bolt (M8X1.25X 45)
604 Lower Wheel House Panel R/L Hand   629 Outer Fascia Retainer
605 Pan Head Torx Screw   630 Impact Bar Skid Plate
606 HWH Screw (M4.2X1.41X25)   631 Hex Flange Nut (M8X1.25 X 75)
607 U shaped Nut ( M4.2X1.41)   632 Multi Thread U Shaped Nut SPG
608 Inner Grill Radiator Grill Bracket R/L Hand   633 Center Fascia Retainer
609 Nut (M6X1)   634 Sems Hex Screw W/ FLat Washer
610 Flange Head Hex Screw   635 Impact Bar Stud
611 Center Radiator Grill Bracket   636 Push on Nut (M8X1.25)
612 Radiator Grill Mount Panel   637 Hex Con Nut W/ Washer (M5X.8)
613 Impact Bar Shim (53mm X 177mm X .8mm)   638 Fascia
614 Impact Bar Shim ( 21mm X 38mm)   639 Outer Fascia Molding R/L Hand
615 Impact Bar Shim ( 30 mm )   640 U -Type Nut (M6.3X1.81)
616 Fascia Reinforcement Center R/L Hand   641 HWH Self Tapping Screw W/Flat Washer
617 Impact Bar 2 Piece Reinforcement   642 Lower Radiator Air Baffle
618 Hex Bolt W/Con Washer   643 Lower Radiator Air Baffle Retainer
619 Impact Bar Skid Plate Extension R/L Hand   644 Lower Fascia Air Deflector Retainer
620 Impact Skid Plate Tie Bar   645 Torx Head Pan Screw W/Con Washer
621 Front Impact Bar Rivet to Plate   646 Air Deflector R/L Hand
622 Impact Bar Skid Plate Support   647 Hex Flange Nut (M6.3X1)
623 Impact Bar Skid Plate Shim and Spacer   648 Center Air Deflector
624 Bracket, Imp Bar Skid PFI Sup R/L Hand   649 Fascia Center Molding
625 Pan Head Torx Screw Self Tapping   650 License Plate Name Front
    651 Fascia Energy Absorber

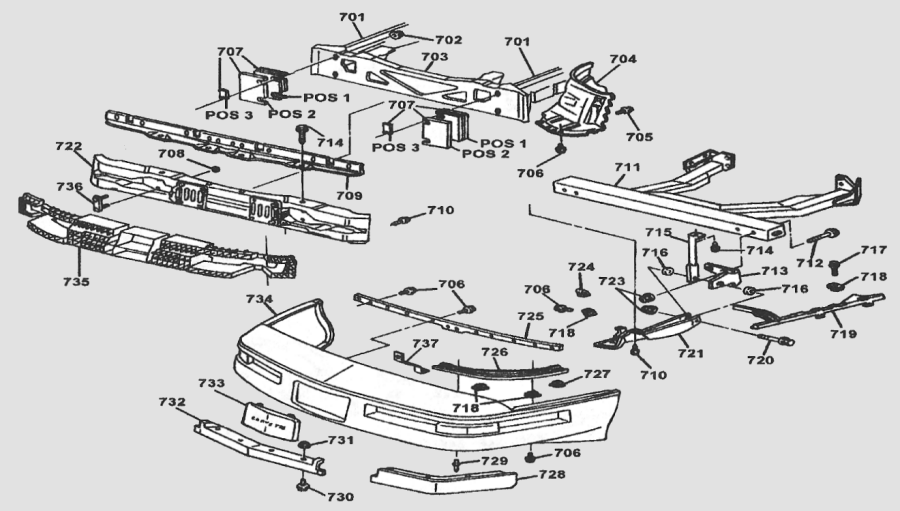

1991 - 1996 C4 Corvette Front Bumper Parts

Description
JC PT #
Description
JC PT #
701 Member Side R/H   720 HFH Bolt (M8X1.25X45)
702 Hex Nut w/Con Washer   721 Impact Bar Skid Plate
703 Front Cross Member Bar Tie   722 Imapct Bar
704 Front Wheel Housing Lower L/R Hand   723 HFH Nut (M8X1.25X7.5)
705 Torx Pan Head Screw W/FI. washer   724 Multi Thread U Sahped Nut
706 Facia Bumper Bolt Center Reinforcement   725 Fascia Reinforcement Center
707 Impact Bar Shim 53mmx177mmx8mm   726 Fascia Retainer Curved
708 Push on Nut (M8X1.25)   727 .380 Square Hole Nut
709 Facia Retainer (Straight )   728 Air Defector R/L Hand
710 Hex Bolt W/Con Washer   729 Fascia Rivet
711 Impact Bar Skid Plate Tie   730 Air Deflector Bolt
712 Impact Bar Skid Plate Bolt   731 Hex Flange Nut (M6.3X1)
713 Impact Bar Skid Plate Support Bracket R/L Hand   732 Center Air Deflector
714 Impact Bar Skid Plate Bolt   733 Front License Nme Plate
715 Impact Bar Skid Plate Support   734 Fascia
716 Impact Bar Skid Plate Tie Spacer   735 Fascia Energy Absorber
717 Pan Head Torx Tap Screw   736 Impact Bar Stud Plate
718 Fascia Reinforcement Retainer Nut   737 Air Deflector Upper Center Brace
719 Fascia Reinforcement Outer R/L Hand

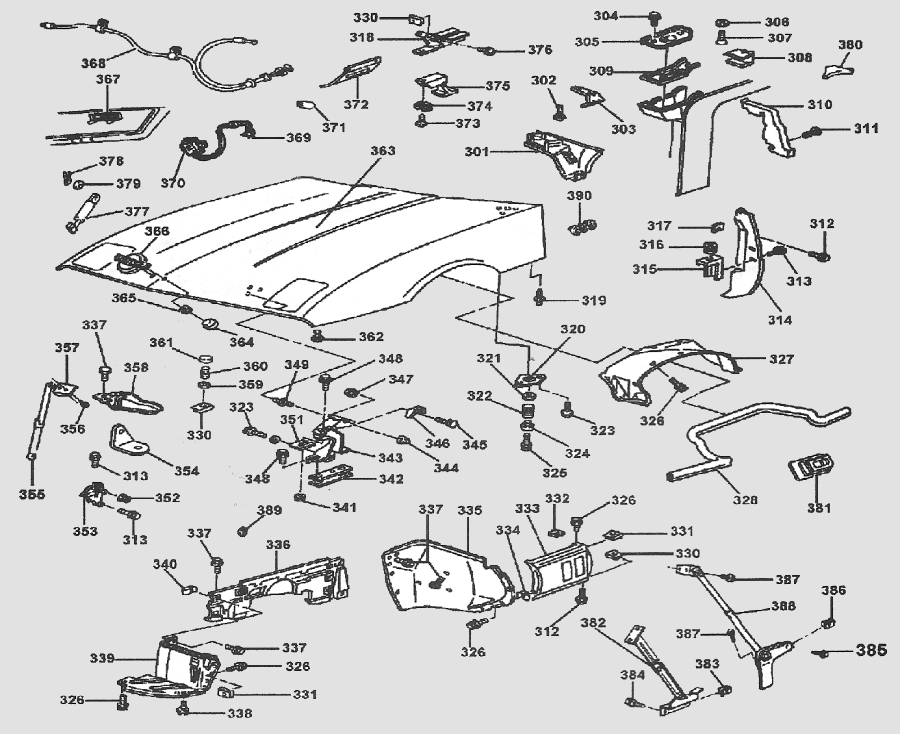

1984 - 1996 Front Hood - Fender Parts

Description
JC PT #
Description
JC PT #
301 Latch Release Cable Bracket   346 Hood Hinge Bracket R/L
302 Latch Release Cable Bracket Bolt   347 HFH Nut (M8X1.25X7.5)
303 Latch Release Cable Bracket L-Shape   348 Hex Bolt with Connecting Washer (M8X1.25X30)
304 Primary Hood Latch Bolt R/L   349 Upper Hinge Reinforcement Stud
305 Primary Hood Latch   350 Hood Hinge Washer
306 Hood Adjust Washer Rear Bumper   351 Hood Hinge to Front Cross member Shim
307 Hood Adjust Rear Bumper   352 Spring Type C U Shaped Nut
308 Cable Release Latch Retainer   353 Lower Hood Stut Bracket R/L
309 Primary Hood Latch Support R/L   354 Front Wheel Housing Support Bracket R/L
310 Hood Outer Rear Seal   355 Hood Strut L/H
311 Push in Retainer   356 Hex Bolt (M6X1X20)
312 Hex Bolt with Connecting Washer (M6X1X25)   357 Hoos Strut Lower Bracket L/H
313 Hex Bolt with Connecting Washer (M6X1X25)   358 Front Front Wheel Housing Support R/L
314 Front Fender Reinforcemnet Rear R/L   359 Hex Nut with Connecting Washer (M8X1.25X7.8)
315 Hood Guide Push Pin Bracket   360 Hood Adjusting Front Bumper Stud
316 Hood Guide Push Pin Bushing   361 Hood Adjusting Front Bumper
317 Front Fender Reinforcemnet Rear Shim   362 Hood Stop Bumoer Retainer
318 Primary Hood Latch Cable Bracket   363 Hood
319 Hood Pin Guide   364 Button Plug 1.00 Stl Pl.
320 Bracket Plate R/H   365 Metal Stamped 5mm Nut
321 Latch Nut Catch Bolt   366 Hood Topside Bowtie Emblem
322 Hood Pop Up Spring   367 Hood Emblem Underside
323 Hex Bolt with Connecting Washer (M8.1X1.25X30)   368 Primary Hood Release Cable
324 Hood Pop Up Spring Retainer   369 Under Hood LP Clip
325 Primary Hood Latch Bolt   370 Under Hood Lamp
326 Pan Head Torx Screw   371 Bulb / Lamp
327 Wheel Housing Panel Upper R/L   372 Primary Latch Release Cable Bezel
328 Front Wheel Housing Seal   373 Pan Head C/R Tap Screw
329   374 Primary Latch Release Cable Bracket
330 U- Shaped Muli Threaded Nut   375 Primary Latch Release Cable Handle
331 U- Shaped Muli Threaded Nut Type P   376 Primary Latch Bracket Bolt
332 Front Fender Shim   377 Open Assist Rod
333 Front Fender R/L   378 Open Assist Rod Retainer
334 U- Shaped Nut Type P   379 Flat Washer
335 Front Wheel Housing Center Panel R/L   380 Primary Latch Support Cover R/L
336 Front Wheel Housing Center Panel R/L   381 Air Intake Duct Seal
337 HFH Bolt ( M6X1X20)   382 Hood Open Hold Rod
338 HFH Bolt ( M4.2X1.4X25)   383 Pan Head C/R Tap Screw
339 Front Wheel HousingLower Front Panel R/L   384 Hex Bolt with Connecting Washer
340 U-Shaped Nut (M6X1.2X24)   385 Hex Bolt with Connecting Spacer Washer
341 HFH Nut (M8X1.25X7.5)   386 U-Type Nut
342 Hood Hinge to Sliderail Shim   387 HWH Tap W/FI. Washer Screw
343 Hood Hinge R/L   388 Hold Open Telescoping Rod
344 Hex Nut (8X1.25) Torx Prvg 10   389 Rear Fender Reinforcement Washer
345 Bolt (M8X1.25X20)   390 Side Emblem / 35th Anniversary

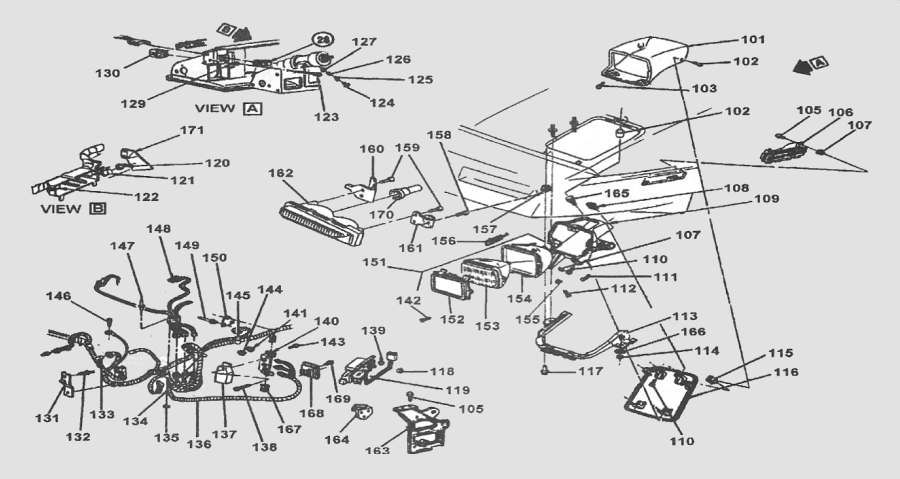

1984 - 1989 Front Lamps

Description
JC PT #
Description
JC PT #
101 Headlamp Bezel R/L   137 Headlamp Actuator Relay Cover
102 Screw ( M6.3X1.81)   138 Screw (M4.2X1.44X50)
103 Screw ( M4.2X1.41X20)   139 Screw (M8X1.44X50)
104 Bumper Headlamp Housing Opening   140 Headlamp Actuator Bracket
105 Hex Screw W/FI Tap Washer   141 Headlamp Actuator Isolation Relay
106 Corner Side Marker Lamp R/L   142 Headlamp Retainer Ring Screw
107 Square Hole Nut Anchor SPL   143 Hex Tap Screw With Washer
108 U-Shaped Nut   144 Headlamp Actuator Relay
109 Headlamp Housing L/R   145 Front Corner Socket With Cable
110 Hex Bolt (M6X1X20)   146 Hex Sems Screw with FI Washer
111 Headlamp Screw Adjust W/ Nut   147 Dome Rivit
112 Screw   148 Headlamp With Wiring Connector
113 Headlamp Mounting Bracket L/R   149 Rivet
114 Hex Nut (M6X1)   150 Forward Lamp Wiring Harness Bracket
115 U-Shaped Nut   151 Headlamp Capsule
116 Headlamp Door L/R   152 Headlamp Retainer Ring
117 HWH Screw (M6.3X1.81.50   153 Headlamp Seal Ring
118 Hex Nut   154 Headlamp Mounting Ring
119 Headlamp Actuator With Harness L/R   155 Hex Nut (M6X1)

120 Turn Signal LP Flasher Clip   156 Headlamp Adjust Spring
121 Turn Signal LP Flasher Clip   157 Square Hole Nut (.370 .250 head)
122 Hazard Flasher   158 Hex Screw (M6X1X25)
123 Headlamp Knob Switch   159 Hex SEMS Screw with Flat Washer
124 Overhead C/S Tap Screw   160 Parking and Turn Signal Spring
125 Hazard Warning Switch Button   161 Parking and Turn Signal Fog Hinge
126 Hazard Warning Switch Knob Spring   162 Parking and Turn Signal Fog Lamp / Socket L/R
127 Hazard Knob Warning Switch   163 Wiring Harness Bracket L/R
128 Fog Lamp Switch   164 Wiring Harness Bracket with Nylow Strain Relief
129 Headlamp Switch Nut   165 Headlamp Housing Screw with Bracket
130 Headlamp Switch   166 Washer (M6.3X16.75X.5)
131 Wiring Harness Bracket L/R   167 Nut (M4.2X1.41)
132 Panel Retainer ( .25 Diameter)   168 Door Actuator Opening Module
133 Parking - Turn Signal Lamp Socket   169 Split Bolt with Washer
134 Side Marker Lamp With Cable Socket   170 Fog Lamp Adut Nut
135 Flat Washer   171 Instrument Panel Wiring Harness Shield
136 Lamp Wiring Harness



1990 - 1996 Front Lamps

Description
JC PT #
Description
JC PT #
201 Headlamp Wiring Harness | Fuse Block Maxi | Note: All By Year   233 Hex Nut (M6X1)
202 Bulb   234 Headlamp Screw Adjust with Nut
203 Door Opening Actuator Control Module   235 Split Anchor Square Hole Nut
204 Hex Bolt With Washer (M6X1X30)   236 Headlamp Housing Including part# 232 - 233 L/R
205 Oval C/S Screw (3.5x1.27x22)   237 Headlight Housing Screw with Bumper
206 Hazard Warning Switch Button   238 Hex Bolt with Connecting Washer (M6X1X25
207 Hazard Warning Switch Spring   239 Screw and Hex Bolt with Connecting Washer
208 Hazard warning Switch Knob   240 Front Foglamp Spring
209 Hazard Lamp Flasher Clip   241 Capsule including part# 229 & 231
210 Oval Torx Screw ( M6X1X45)   242 Parking - Turn Signal - Fog Lamp Bracket
211 Headlamp Bezel L/R   243 Parking Lamp Includes Part#252
212 Turn Signal Lamp Flasher   244 Parking Lamp /Turn Signal - Foglamp Spring
213 Self Tapping Hex Bolt with Flat Washer   245 Pan Head Torx Scxew with FI Washer
214 Split Ancor Square Hole Nut   246 Parking Directional Signal Bulb
215 Front Side Marker Lamp L/R   247 Foglamp Socket with Bulb
216 Front Side Marker Lamp Wiring Harness Bracket L/R   248 Plastic Adjust Retainer Strap
217 Pan Head Screw witgh Flat Washer   249 1/4 EX Tooth Lock Washer
218 Headlamp Instrument Panel Switch   250 Black Nylon Tie Adjust Strap
219 U-Shaped Spring Nut (M6X1)   251 Push in Tie Retainer
220 Headlamp Door Opening L/R   252 Foglamp Adjusting Nut
221 U-Shaped Prev Torx Nut   253 Headlamp Actuator including Harness L/R
222 Hex Screw with Conecting Washer (M6X1X20)   254 Hex Screw (M8X1.25X40)
223 Hex Nut with Connecting Washer (M6X1)   255 Hex Nut (M8X1.25)
224 Headlamp Mounting Bracket L/R   256 Headlamp Wire Connector
225 Hwex Screw with FI Washer (M6.3X1.8X40)   257 Foglamp Relay
226 Square Hole Nut (.380 .250 head)   258 Headlamp Connector (ZR1)
227 Hood Hinge Bracket L/R   259 Turn Signal Foglamp Bracket
228 Headlamp Retainer Ring Screw   260 Turn Signal Foglamp Bolt
229 Headlamp Retainer Ring   261 Turn Signal Foglamp Parking Lens L/R
230 Rectangular Lamps Sealbeam   262 Turn Signal Foglamp Parking Lamp L/R
231 Headlamp Mount Ring   263 Front Foglamp Wiring
232 Screw

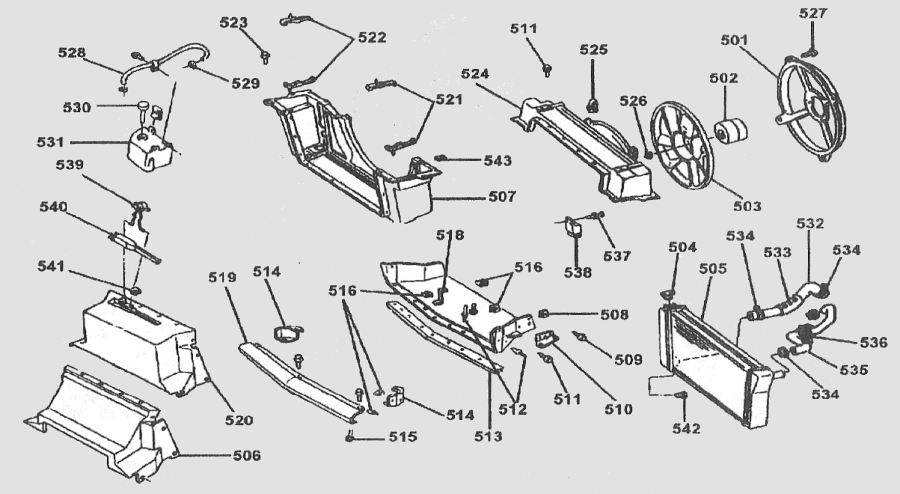

1984 - 1989 Front Radiator & Related Parts

Description
JC PT #
Description
JC PT #
501 Electric Cooling Fan Shroud Kit   523 Hex Bolt
502 Electric Cooling Fan Motor Kit   524 Radiator Upper Support
503 Electric Cooling Fan Kit   525 Upper Spring Nut
504 Radiator Fill Cap   526 Cooling Fan Nut
505 Radiator Standard 20461   527 Bolt (M8X1.25X25)
506 Upper Radiator Air Baffle   528 Bulk Hose (3/8 in ID)
507 Radiator Lower Support   529 Worm Type Clamp
508 U-Shaped Nut   530 Coolent Recovery Tank Cap
509 Pan Head Screw with Washer   531 Reservoir Recovery
510 Wheel Housing Bracket / Panel L/R   532 Radiator Outlet Hose
511 HWH Screw   533 Radiator Outlet Hose Gaurd
512 Rivet   534 Hose Clamp
513 Radiator Lower Air Retainer   535 Radiator Hose Inlet
514 Inner Radiator Grill Bracket L/R   536 Inlet Hose Support
515 HWH Center Tap Screw   537 Fan Retainer
516 Nut (#8-18)   538 Engine Cooling Fan Relay
517 Lower Radiator Baffle   539 Jack Handle Storage Latch
518 Center Radiator Grill Bracket   540 Wheel Jack Wrench Handle
519 Radiator Grill Mount Panel   541 U-Shaped Nut
520 Upper Radiator Air Baffle   542 Radiator Drain Cock
521 Radiator Mount Insulator LH   543C Type Spring U-Shaped Nut
522 Radiator Mount Insulator RH



1990 - 1996 Front Radiator & Related Parts

Description
JC PT #
Description
JC PT #
601 Radiator Shroud   628 Lower Air Baffle Radiator Retainer
602 HWH Tap Screw with FI Washer   629 Inner Radiator Grill Bracket LH
603 U-Shaped Nut Type P   630 Center Radiator Grill Bracket
604 Upper Radiator Deflector   631 U-Shaped Multi Threaded Spring Nut
605 Coolant Recovery Hose Plug   632 HWH Bolt (M4.2X1.41X25)
606 Radiator Hose Support   633 Radiator Mount Grill Panel
607 Upper Radiator Hose Support   634 U-Shaped Nut (M4.2X1.41)
608 C Type Spring U-Shaped Nut   635 Inner Radiator Grill Bracket
609 Engine Colling Fan Bracket   636 Worm Gear Clamp
610 HFH Bolt   637 Radiator Outlet Hose Clamp
611 Engine Cooling Fan Relay   638 Recovery Reservoir
612 Radiator Inlet Hose   639 Coolant Recovery Reservoir Cap
613 Radiator Inlet Hose Clamp   640 Radiator Surge Tank Air Baffle Hose
614 ASM Bolt   641 HWT Tap Screw
615 Radiator Support Bracket   642 Radiator Surge Tank Inlet Hose
616 C Type Spring U-Shaped Nut   643 Worm Gear Clamp
617 AC Condensor   644 HEX Sems Screw with FI Washer
618 Radiator Manual Transmission   645 Hi Fill Clnt Recovery Reservoir Bracket
619 Manual Transmission   646 Clnt Recovery Reservoir Retainer Bracket
620 Radiator Drain Cock   647 Radiator Surge Tank IncludingHi Fill Sensor
621 Hex Nut with Connecting Washer   648 Steel Loop Cushened Clamp
622 Radiator Outlet Hose   649 Hex Screw with Fl Connecting Washer
623 Radiator Outlet Hose Clamp   650 Radiator Fill Cap
624 Radiator Support Bolt   651 Engine Coolant Fan
625 Radiator Mount Lower RH   652 Hex Bolt with Connecting Washer
626 Radiator Mount Lower LH   653 Reservoir Mounting Bracket
627 Large Dome Head Rivet

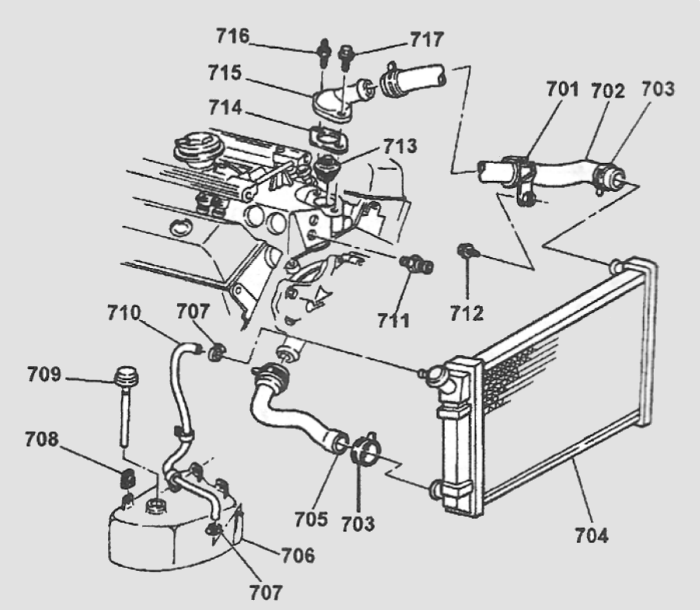

1984 - 1989 Hoses and Pipes

Description
JC PT #
Description
JC PT #
701 Radiator Support Hose   710 3/8 Hose cut to Size
702 Radiator Inlet Hose   711 Engine Coolant Temperature Gauge
703 Worm Gear Clamp SST Black   712 Hex Bolt with Connecting Washer
704 Heavy Duty Radiator   713 Thermostat (195 Degrees)
705 Radiator Outlet Hose   714 Outlet Coolant Gasket
706 Recovery Reservoir   715 Coolant Outlet
707 Worm Gear Clamp   716 Coolant Outlet Bolt
708 U-Shaped Spring Nut   717 Coolant Outlet Bolt
709 Recovery Reservoir Coolant Cap

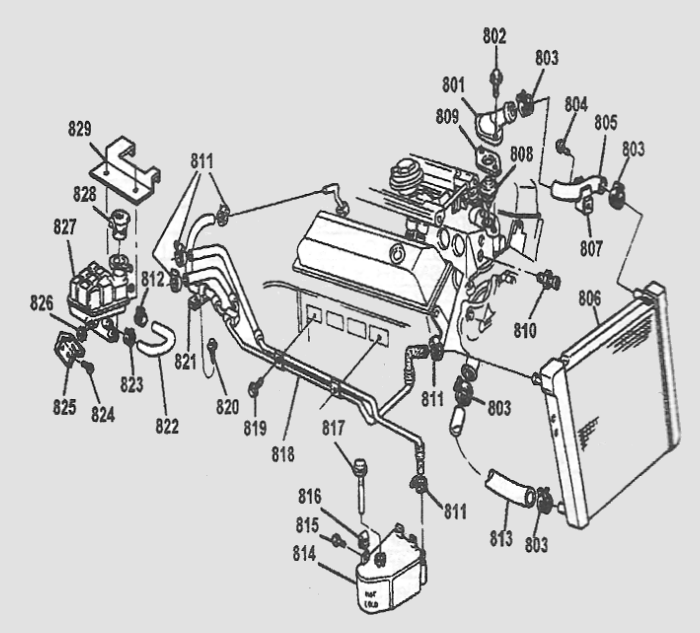

1990 - 1996 Hoses and Pipes

Description
JC PT #
Description
JC PT #
801 Coolant Outlet   816 Nut, Spring U Shape
802 Coolant Outlet Bolt   817 Cap, Coolant Recovery Reservoir
803 Radiator Outlet Engine Hose Clamp   818 Hose, Radiator. Surge Tank Air Bfl.
804 HWH SCrew with FI Washer   819 Screw, Hex W/Washer
805 Radiator Inlet Hose   820 Screw, Hex W/Fl Washer
806 Radiator Automatic   821 Clip, Split Closed Tube
807 Radiator Hose Support   822 Hose, Radiator Surge Tank Inlet

808 Thermostat (195 Deg.)

  823 Clamp, Worm Gear
809 Gasket, Coolant Outlet   824 Screw, Sems Hex W/Fl
810 Sensor, Maniford Temp.   825 Bracket, Clnt. Recovery Rsvr.
811 Clamp, Hex Head Worm Gear   826 Retainer, Clnt. Recovery Rsvr Brkt
812 Clamp, Radiator Inlet Hose   827 Tank, Rad. Surge Hi Fill
813 Hose, Radiator Outlet   828 Cap, Radiator Fill
814 Reservoir, Coolant Recovery   829 Braket , Reservoir Mounting
815 Bolt, Hex W/Washer
